Product introduction
WF-MR20-1 is a dual-mode composite single antenna module using chip RTL8720DN, BT and WIFI, which is widely used in smart home, industrial control and wireless sensor networks.

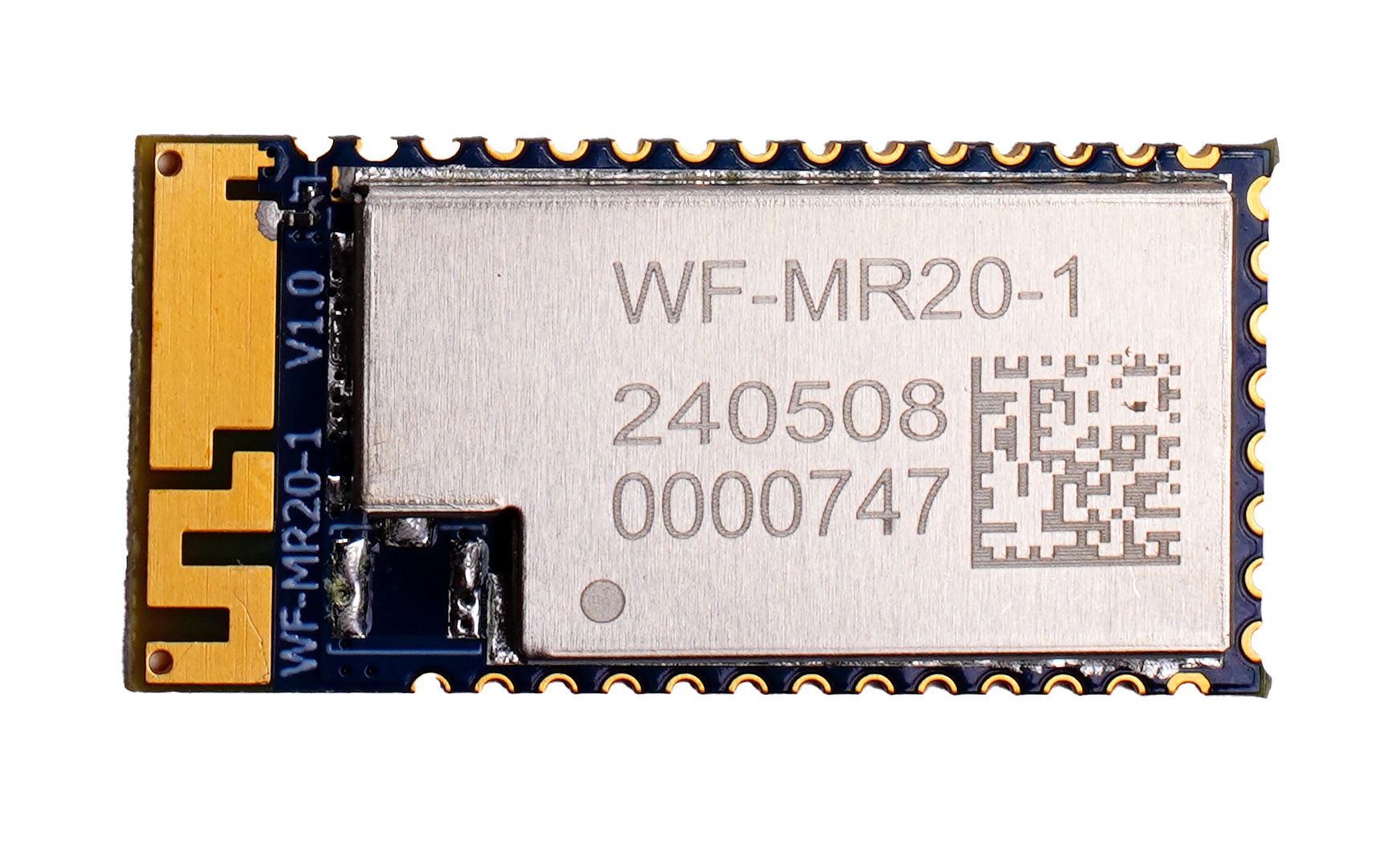

WF-MR20-1
Main parameter
?Chipset：RTL8720DN (480MHz)
?Module dimension(mm)：13*26.9*2mm
?WiFi Versions:802.11 a/b/g/n
?BT Versions:BT5.0
?Operating temperature: -40~85℃
?Mac:Single
?Frequency Band:2.4G/5G
?RAM:993KB
?Flash:16MB
?Voltage:3.3V
?Interface:ADC,GPIO,URAT
?Antenna:Interal Antenna
?Application:Smart home、Industrial controls
