Product introduction
WF-MV81-1 is a highly integrated 2.4G single-band Wi-Fi 4 module with support for an SDIO2.0 universal interface and a PHY data rate up to 72.2Mbit/s.

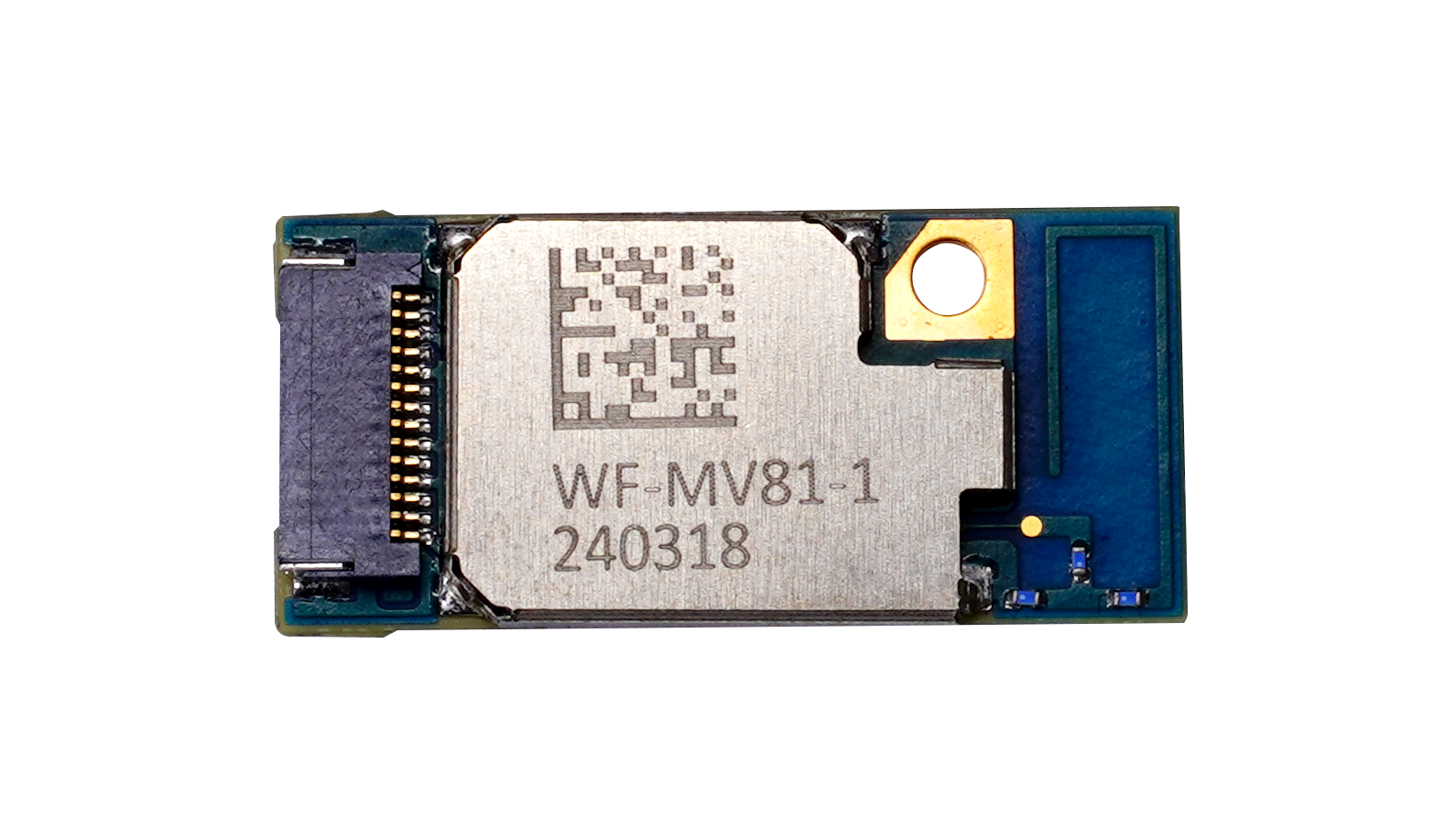

WF-MV81-1
Main parameter
?Chipset：88W8801
?Module dimension(mm)：19.5*9*2mm
?WiFi Versions:802.11 a/b/g/n
?Operating temperature:-20~85℃
?Mac:Single
?Bandwidth(MHz):20MHz
?Frequency Range(GHz):2.4GHz
?Protocol:None
?Operating Voltage:3.3V
?IO Voltage:3.3V
?Encryption Mode:MPA3
?Interface:SDIO
?Antenna:2G 1*1
?Data transmission:Max 72 Mbps
?Application:DVR、OTT、DVB、IPC
