Product introduction
WF-M574-JK is a dual-mode composite module using Qualcomm QCA6574 chip, dual antenna BT and WIFI, which is widely used in infotainment console, industrial control and wireless sensor networks.

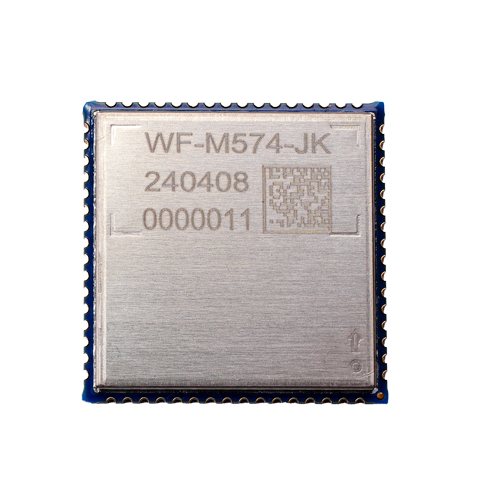

WF-M574-JK
Main parameter
?Chipset：QCA6574
?Module dimension(mm)：22*22*2.5mm
?WiFi Versions:802.11 a/b/g/n/ac
?BT Versions:BT5.0
?Operating temperature:-40~85℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:1.8,3.3V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:SDIO,UART,PCM/I2S
?Antenna:2（2.4G1*1+5G1*1）
?Data transmission:Max 866 Mbps
?Application:Automative
