Product introduction
WF-MQ95-1 is a dual-mode composite module using Qualcomm QCA-6595 chip, dual antenna BT and WIFI, which is widely used in infotainment consoles, industrial control and wireless sensor networks.

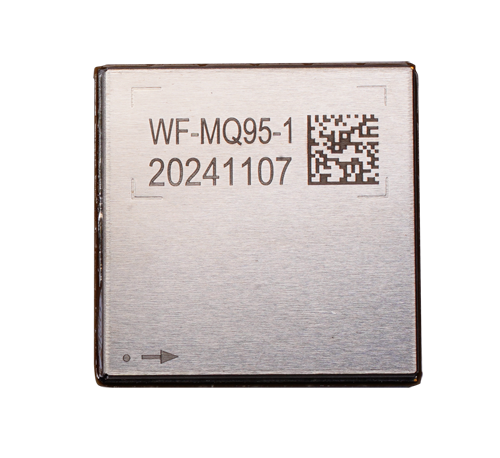

WF-MQ95-1
Main parameter
?Chipset：QCA-6595
?Module dimension(mm)：23*23*2.9mm
?WiFi Versions:802.11 a/b/g/n/ac
?BT Versions:BT5.2
?Operating temperature:-40~85℃
?Mac:Dual
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:3.3V,1.80V,2.2V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:PCIE，UART，PCM/I2S
?Antenna:2G 1*1 + 5G 2*2 (80 MHz)
?Data transmission:Max 1016 Mbps
?LE-Audio：Support
?Application:Automative
