Product introduction
WF-MA80-2 is a dual-mode composite module using AIC8800D80 chip, dual antenna BT and WIFI, which is widely used in infotainment console, industrial control and wireless sensor networks.

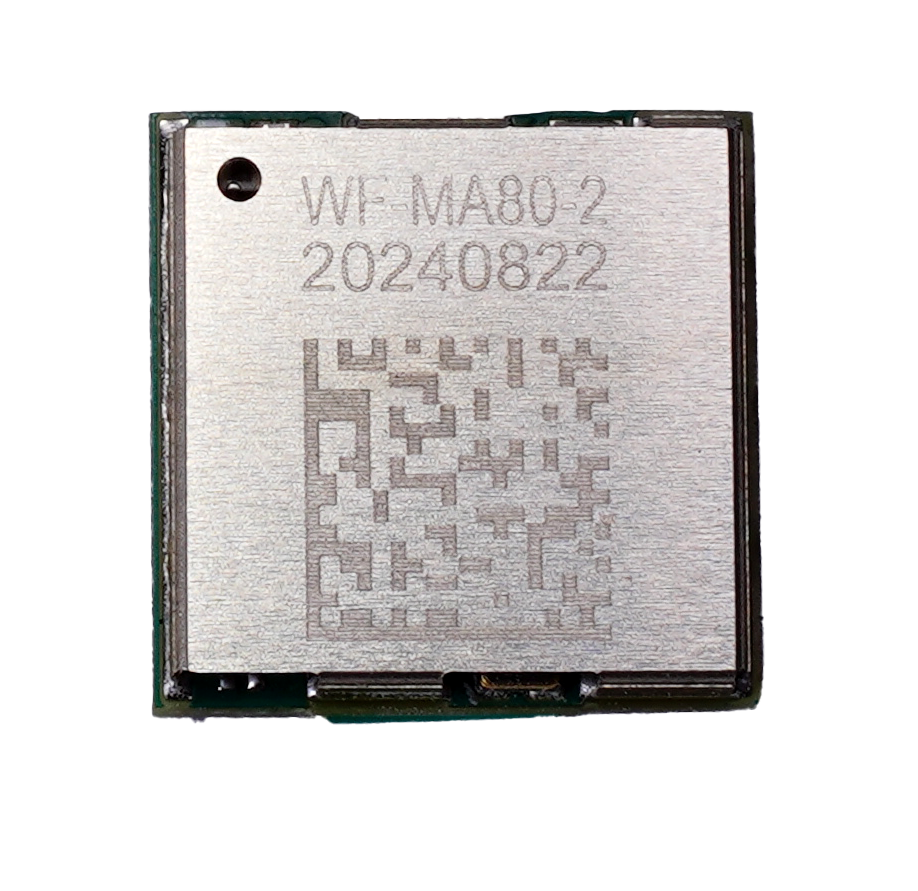

WF-MA80-2
Main parameter
?Chipset：AIC8800D80
?Module dimension(mm)：12*12*2.5mm
?WiFi Versions:802.11 a/b/g/n/ac/ax
?BT Versions:V5.4
?Operating temperature: -20~80℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:3.3V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:SDIO,UART,PCM/I2S,USB
?Antenna:2G 1*1 + 5G 1*1 (80 MHz)
?Data transmission:Max 600 Mbps
?LE-Audio：No Support
?Application:DVR、OTT、DVB、IPC
