Products

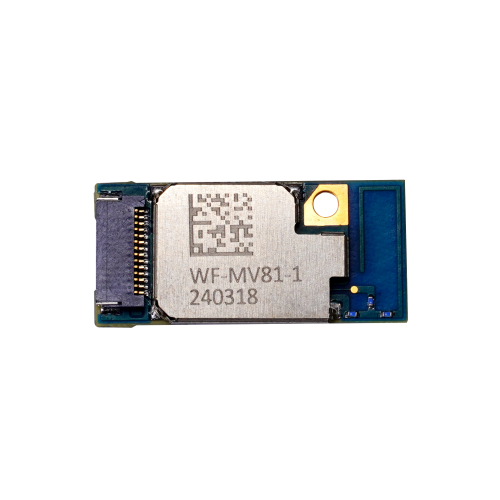

WF-MV81-1
Product introduction
Main parameter
?Chipset：88W8801
?Module dimension(mm)：19.5*9*2mm
?WiFi Versions:802.11 a/b/g/n
?Operating temperature:-20~85℃
?Mac:Single
?Bandwidth(MHz):20MHz
?Frequency Range(GHz):2.4GHz
?Protocol:None
?Operating Voltage:3.3V
?IO Voltage:3.3V
?Encryption Mode:MPA3
?Interface:SDIO
?Antenna:2G 1*1
?Data transmission:Max 72 Mbps
?Application:DVR、OTT、DVB、IPC

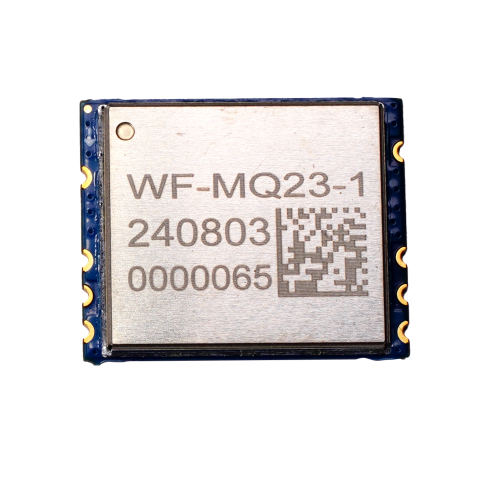

WF-MQ23-1
Product introduction
Main parameter
?Chipset：QCA1023
?Module dimension(mm)：14.8*18.2*2.3mm
?WiFi Versions:802.11 a/b/g/n/ac
?Operating temperature:-40~85℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:None
?Operating Voltage:3.3V
?Encryption Mode:MPA3
?Interface:USB
?Antenna:2G/5G 1*1 (80 MHz)
?Data transmission:Max 433.3 Mbps
?Application:DVR、OTT、DVB、IPC
WF-MR21-2
Product introduction
Main parameter
?Chipset：RTL8821CS
?Module dimension(mm)：17*17*2.4mm
?WiFi Versions:802.11 a/b/g/n/ac
?BT Versions:BT 5.4
?Operating temperature:-40~85℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:3.3V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:SDIO,UART,PCM/I2S
?Antenna:2G/5G 1*1
?Data transmission:Max 433.3 Mbps
?Application:Automative

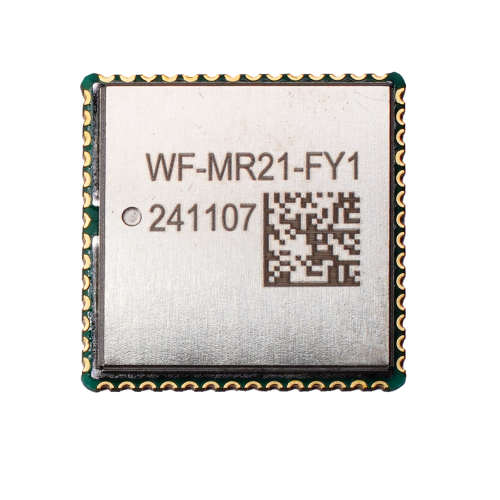

WF-MR21-FY1
Product introduction
Main parameter
?Chipset：RTL8821CS
?Module dimension(mm)：17*17*2.4mm
?WiFi Versions:802.11 a/b/g/n/ac
?BT Versions:BT 5.4
?Operating temperature:-40~85℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:3.3V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:SDIO,UART,PCM/I2S
?Antenna:2（2.4G1*1+5G1*1）
?Data transmission:Max 433.3 Mbps
?Application:Automative

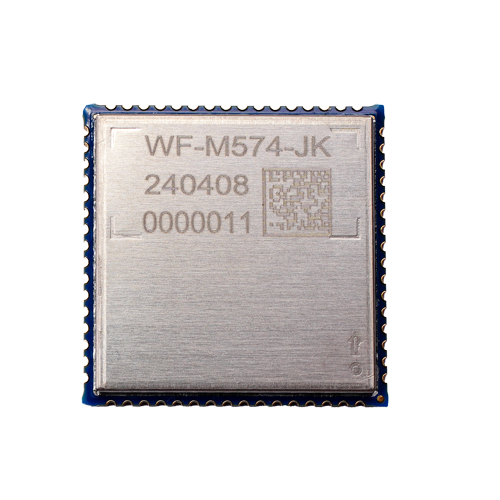

WF-M574-JK
Product introduction
Main parameter
?Chipset：QCA6574
?Module dimension(mm)：22*22*2.5mm
?WiFi Versions:802.11 a/b/g/n/ac
?BT Versions:BT5.0
?Operating temperature:-40~85℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:1.8,3.3V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:SDIO,UART,PCM/I2S
?Antenna:2（2.4G1*1+5G1*1）
?Data transmission:Max 866 Mbps
?Application:Automative

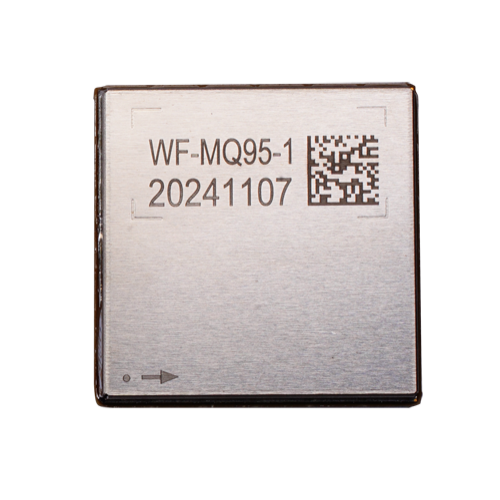

WF-MQ95-1
Product introduction
Main parameter
?Chipset：QCA-6595
?Module dimension(mm)：23*23*2.9mm
?WiFi Versions:802.11 a/b/g/n/ac
?BT Versions:BT5.2
?Operating temperature:-40~85℃
?Mac:Dual
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:3.3V,1.80V,2.2V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:PCIE，UART，PCM/I2S
?Antenna:2G 1*1 + 5G 2*2 (80 MHz)
?Data transmission:Max 1016 Mbps
?LE-Audio：Support
?Application:Automative
